![](/uploads/allimg/180227/1-1P22G2350X51.jpg)

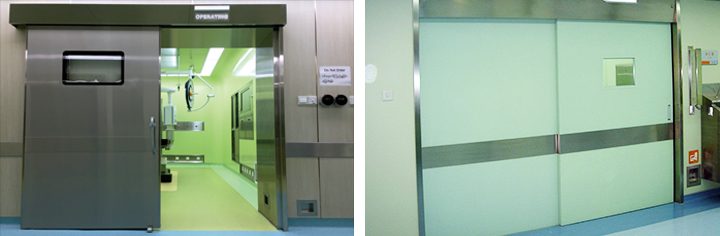

Wall-hanging Single Automatic Sliding Door Wall-hanging Double Automatic Sliding Door
![](/uploads/allimg/180227/1-1P22G3063T01.jpg)

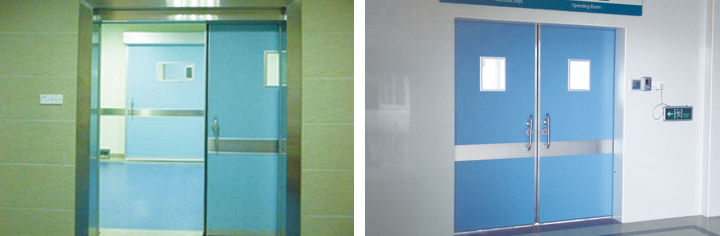

Embedded Single Automatic Door Embedded Double Automatic Door
Features● Keep the same level with the wall, more beautiful, full of integral feeling.
● Using automatic turning lathe processing, having excellent sealing performance, it can prevent cross contamination and improve cleanliness. Airtight performance meets the national standards.
● Unique doorknob design.
● Indoor and outdoor sound insulation effect is good.
● Strong door body, quick open and close, to minimize the degree of air circulation, can prevent the cold air and dust enter and keep constant temperature and humidity.
![](/uploads/allimg/180227/1-1P22G5335E04.jpg)

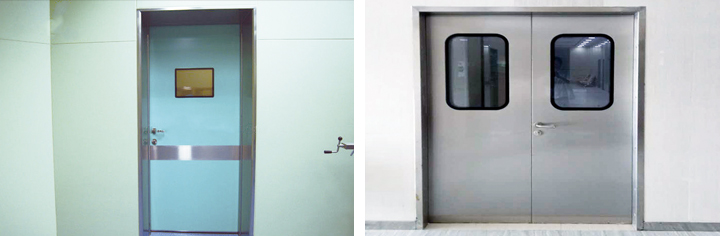

Single Automatic Swing Door Double Automatic Swing Door
Features● Lined with lead plate, it can cover x-rays and avoid the harmful rays reveal to bring hurt to human body.
● Using multiform package edge, and equipped with high strength and wearable sealing strip, can satisfy the clean requirement of the hospitals.
● Door can choose aluminum alloy frame environmental filling process, the aluminum honeycomb filling process and steel door; bottom can install down type seal brush.
● Precision production, from materials to manufacture craft and hardware accessories to ensure the quality of products and expand the products’ lifetime.
● We use high quality hardware fittings.
Product Name | Model No | Door Frame Size | Reserved Keel Hole Size | Finished Hole Size |
Embedded Single Automatic Door | KB-ZZM001 | 1480*2140*L | 1450*2125*L1 | 1400*2100*L2 |
KB-ZZM002 | 1580*2140*L | 1550*2125*L1 | 1500*2100*L2 | |
Embedded Double Automatic Door | KB-ZZM003 | 1480*2140*L | 1450*2125*L1 | 1400*2100*L2 |
KB-ZZM004 | 1580*2140*L | 1550*2125*L1 | 1500*2100*L2 |
