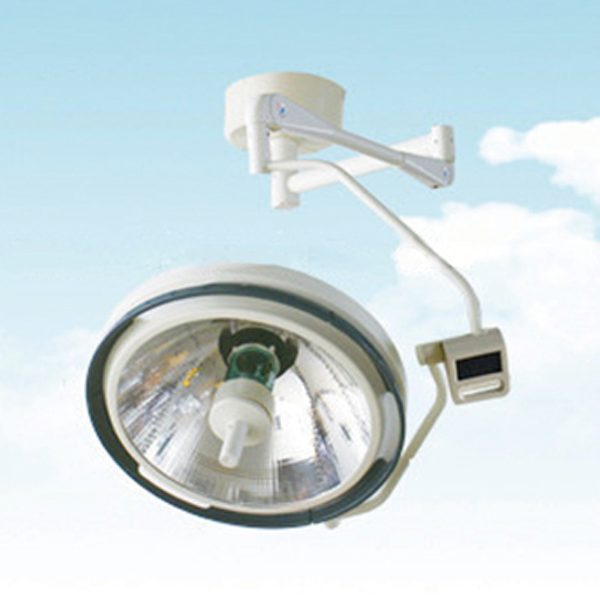

Halogen Lamp
LED Lamp
 |
 |
 |
|
KB-YCZF 600 Multi-prisms Shadowless Lamp |
KB-YCZF 600/600 | KB-YCZF 700 |
 |
 |
 |
| KB-YCZF 700/700 | KB-YCZF 700/500 | KB-YCZF700/500(Built-in Camera) |
| Model No | KB-YCZF 500 | KB-YCZF 600 | KB-YCZF 700 |
| Lamp head diameter(MM) | 500 | 600 | 700 |
| Illuminance | 160000 | 180000 | 180000 |
| Colour Temperature(K) | 4300±500 | ||
| Spot Diameter(MM) | 100-300 | ||
| Lighting Depth(MM) | ≥1200 | ||
| Dimming Range | 1-9 | ||
| CRI | ≥97% | ||
| RA | ≥97% | ||
| Temp Rise at Surgeon's Head | ≤1℃ | ||
| Temp Rise at working area | ≤2℃ | ||
| Operating radius | ≥2200MM | ||
| Working radius | 600-1800MM | ||
| Power voltage | 220V±22V 50Hz±1Hz | ||
| Input power | 400VA | ||
| Bulb lifetime | 10000h | ||
| Lamp power | 150W | ||
| Auto switch time of backup bulb | ≤0.1s | ||
| Best Install Height | 2800-3000mm | ||
LED Lamp
 |
 |
 |
| KB-YCLED 720 | KB-YCLED 720/720 | KB-YCLED 720/720 (External Camera) |
 |
 |
 |
| KB-YCLED 700 (AdjustableFocus) | KB-YCLED 700/700 (Adjustable Focus) |
KB-YCLED 700/700 (Adjustable focus, external camera) |
| Model No | KB-YCLED 720 | KB-YCLED 700 | |
| Lamp head diameter(MM) | 720 | 700 | |
| Illuminance | 180000 | ||
| Colour Temperature(K) | 4300±500 | ||
| Spot Diameter(MM) | 100-300 | ||
| Lighting Depth(MM) | ≥1200 | ||
| Dimming Range | 1-9 | ||
| CRI | ≥97% | ||
| RA | ≥97% | ||
| Temp Rise at Surgeon's Head | ≤1℃ | ||
| Temp Rise at working area | ≤2℃ | ||
| Operating radius | ≥2200MM | ||
| Working radius | 600-1800MM | ||
| Power voltage | 220V±22V 50Hz±1Hz | ||
| Input power | 400VA | ||
| Bulb lifetime | ≥6000h | ≥10000h | |
| Lamp power | 1W/3V | ||
| Best Install Height | 2800-3000mm | ||
