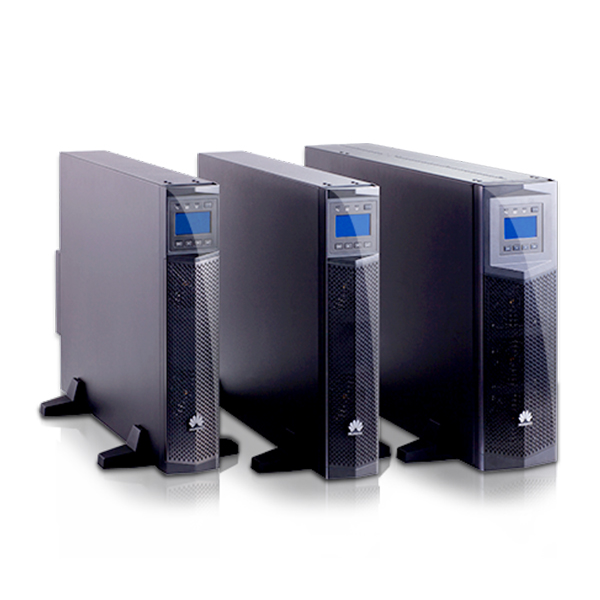

KB-UPS2000-G Series (6-20kVA)
Introduction
Scenarios
Features
Efficient
• High efficiency at online mode to reduce power loss of UPS and air conditioner: up to 95% for 15/20kVA, 94.5% for 10kVA, 94% for 6kVA.
Simple
Introduction
|
UPS2000-G series with a capacity ranging from 6kVA to 20kVA is an online double conversion power system that delivers continuous, high-quality.
AC power. It is rack/tower convertible and 95% high efficiency helps it get ECA energy saving certification from Unitede Kingdom government and the world’s first batch of “Energy Star” certification. It’s really a perfect power.
protection solution for small power scenarios. |
 |

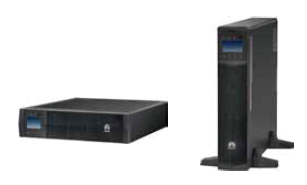

| UPS2000-G-6K/10K |
Scenarios
|
• Small and medium-sized enterprises, large enterprise branch offices, bank branches and other small data centers.
• Networks, communications systems, automatic control systems
and other precision equipment. |
 |
| UPS2000-G-15K/20K |
Features
Reliable
• 5kA lightning protection design, reducing lightning-related failure rate.
• Key component failure pre-alarm including fans, batteries, bus capacitors to remind customers to maintain before failure occurs.
• Ultra-wide voltage input range to extend battery service life by effectively reducing times of switchover to battery mode.
Efficient
• High efficiency at online mode to reduce power loss of UPS and air conditioner: up to 95% for 15/20kVA, 94.5% for 10kVA, 94% for 6kVA.
Simple
• Rack/tower convertible, suitable for different installation scenarios.
• High expandability design: up to four units can be connected in parallel to achieve higher capacity or reliability.
• NetEco network manager, supporting centralized management to all the UPSs.
Specifications
Specifications
| Rated Capacity(kVA/kW) | 6/5.4 | 10/9 | 15/13.5 | 20/18 | |
| Input: Output | 1-in: 1-out |
1-in: 1-out or 3-in: 1-out
|
1-in: 1-out,3-in: 1-out or 3-in: 3-out
|
||
|
Mains Input
|
Input Wiring | L+N+PE | L+N+PE /3Ph+N+PE | ||
| Rated Voltage | L-N: 220/230/240V AC | ||||
| Input Voltage Range | L-N: 80-280V AC | ||||
| Input Frequency Range | 40-70Hz | ||||
| Input Power Factor | 0.99 | ||||
|
By pass Input
|
Rated Voltage | L-N: 220/230/240V AC | |||
| Frequency | 50/60 ± 6Hz | ||||
| Battery | Rated Voltage | 192-240V DC |
384-480V DC, 32-40 section adjustable, default 40
|
||
| Output | Output Wiring | L+N+PE | L+N+PE /3Ph+N+PE | ||
| Output Sockets | 2 × C13 (10A) | - | |||
| Rated Voltage | 220/230/240V AC ±1% | L-N: 220/230/240V AC ±1% | |||
| Rated Frequency | Tracking the bypass input (Normal mode); 50/60 Hz±0.05% (Battery mode) | ||||
| Output Power Factor | 0.9 | ||||
| Waveform | Sine wave, THDv<2% | ||||
| Efficiency | 94% | 94.5% | 95% | ||
| Environment | Operating Temperature | 0-40ºC | |||
| Storage Temperature | -40 to 70ºC | ||||
| Relative Humidity | 0%-95% (No condensing) | ||||
| Operating Altitude | 0-1000m. Above 1000m, derating rate based on EN/IEC 62040-3 | ||||
| Audible Noise | <55dB | <58dB | |||
| Others | H × W × D (mm) | 86 × 430 × 615 | 130 × 430 × 757 | ||
| Weight | 14kg | 16kg | 32kg | ||
| Certifications | EN/IEC 62040-1; EN/IEC 62040-2; EN/IEC 62040-3; CE; CB; RoHS, REACH, WEEE, etc | ||||
| Communications | USB(optional RS485/Dry contact/SNMP) | ||||
Notice:
1. The UPS series are for commercial/industrial use and not used for life support equipment;
2. The critical systems concerning economic and public security must adopt power supply architecture that comply with Uptime TIER III or TIER IV requirements stated in TIA942.
