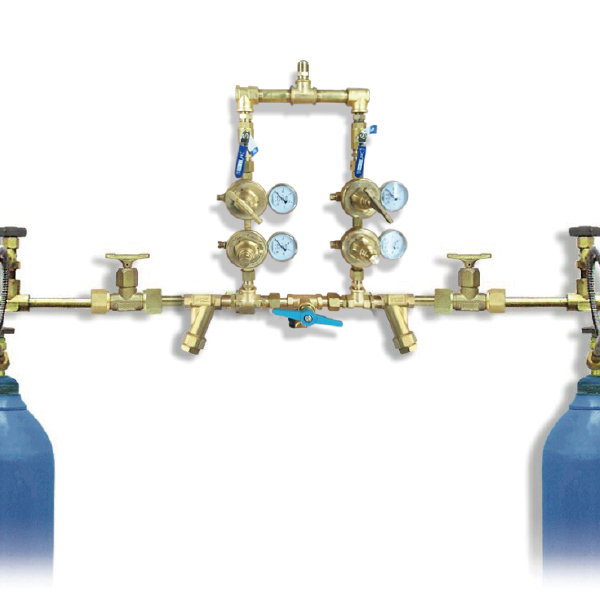

• Open architecture designing, can satisfy flexible extend requirements.
• Compact structure, reasonable layout, distance for cylinder connection point is 250mm.
• Adopt grade one pressure reduce structure.
• Adopt brass material, 3mm thickness, diameter DN19mm. Adopt silver-alloy brazing for pipe connection to avoid leakage.
• Special changeover valve design, easy for pressure adjustable and changing between main gas cylinder set and standby gas cylinder set.
• With gas filter to filter out impurity and dirty in the gas.
• Can Installed on the wall or horizontal installation on cylinder holder support.
• Degreasing washing accordance with ISO15001 standard, application for oxygen.
• 100% pressure resistance test before delivery, safety and reliable.
• With 1000mm long high pressure soft metal pipe.
• Applicable gas: oxygen, nitrous oxide, nitrogen, carbon dioxide.
• Accordance with Chinese Standard Q/SVDQ 01-2005 and International Standard IEC 601-4(Medical system).
