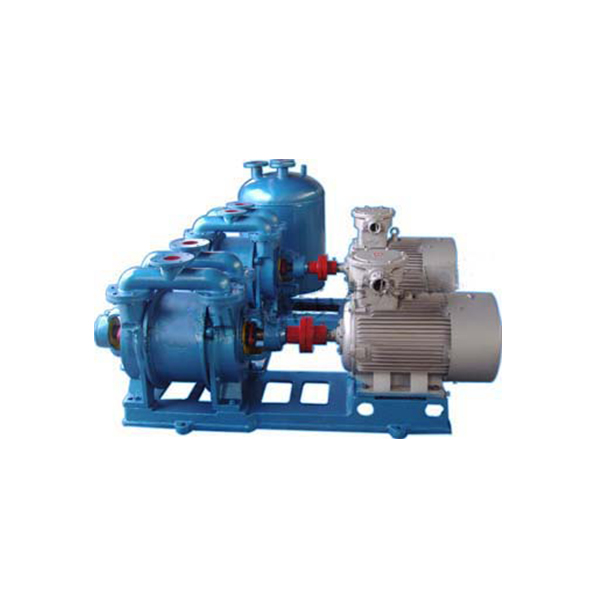

Vacuum Station

Water-Ring Type

  • Comparison to SK series single stage water ring vacuum pump, having character of a high vacuum degree, large pumping speed in high vacuum area.
  • Shaft power is significantly higher than 2BV, 2BEA series water ring vacuum pump under the same pumping speed.
  • Because it is impeller structure, manufacture and maintenance is more complicated, more vulnerable parts.
  • Detailed information
  • Performance index
  • Reference drawing
  • Reference video

Model Air Flow(m3/min) Max
Pressure
(mmHg)
Motor Power(kW) Pump
(r.p.m)
Compr.
Pressure
(MPa)
Outlet
Diameter
(mm)
Weight
(Kg)
Max Air Flow Working Pressure Vacuum Pump Compr.
2BV2060 0.15 0.12 -670 0.75 - 2850 - G1” 30
2BV2061 0.8 0.75 -670 2.2 - 2850 0-0.1 G1” 80
2BV5110 1.5 1.35 -700 4 5.5 1440 0-0.1 70 200
2BV5111 3 2.8 -700 5.5 7.5 1440 0-0.1 70 320
2BV5131 6 5.4 -700 11 15 1440 0-0.1 80 460
2BE1202-970 12 10.8 -700 18.5 30 970 0-0.1 80 750
2BE1203-970 20 18 -700 37 55 730 0-0.1 150 1700
2BE1252-740 30 27 -700 55 75 730 0-0.1 150 2300
2BE1253-740 42 37.8 -700 75 - 730 - 150 2500
2BE1303-740 60 54 -700 95 - 550 - 250 3500
2BE1353-592 85 76.5 -700 132 - 550 - 250 3800
2BE3420-390 120 108 -700 185 - 490 - 300 5520
